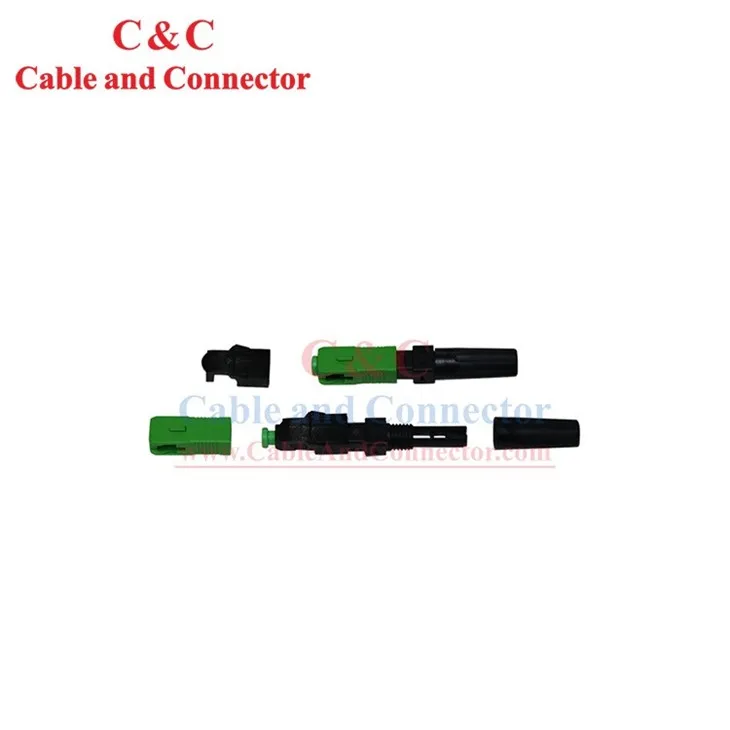

Quick Connect Fiber Connectors, Optical Fiber Fast Connector Fast Connector: A fast connector is a specialized type of connector that allows users to quickly establish fiber optic connections without the need for special tools or complex procedures. These connectors are especially useful for temporary connections, rapid deployment, and maintenance, particularly in Fiber-to-the-x (FTTx) deployments. SC/APC Fast Connector (CC-FCSA-250PLW), suitable for: 3.0 x 2.0 mm/2.0- 3.0mm Cable, Fiber Diameter: 125μm (652 & 657), Coating Diameter: 250μm, Mode: SM, Insertion Loss: ≤ 0.3dB (1310nm & 1550nm), Return Loss: ≤ -50dB, Tensile Strength: >5 N, Tighten Strength of Coating: >10 N.
|
|
|
|
3.0 x 2.0 mm/2.0- 3.0mm Cable |
|
|
125μm (652 & 657) |
|
|
250μm |
|
|
about 15s (exclude fiber presetting) |
|
|
Less than or equal to 0.3dB (1310nm & 1550nm) |
|
|
Less than or equal to -50dB |
|
|
>98% |
|
|
>10 times |
|
|
>5 N |
|
|
>10 N |
|
|
-40-+85 degree |
|
|
On-line Tensile Strength Test (20 N) |
△ IL Less than or equal to 0.3dB |
|
Mechanical Durability (500 times) |
△ IL Less than or equal to 0.3dB |
|
Drop Test (4m concrete floor, once each direction, three times total) |
△ IL Less than or equal to 0.3dB |
